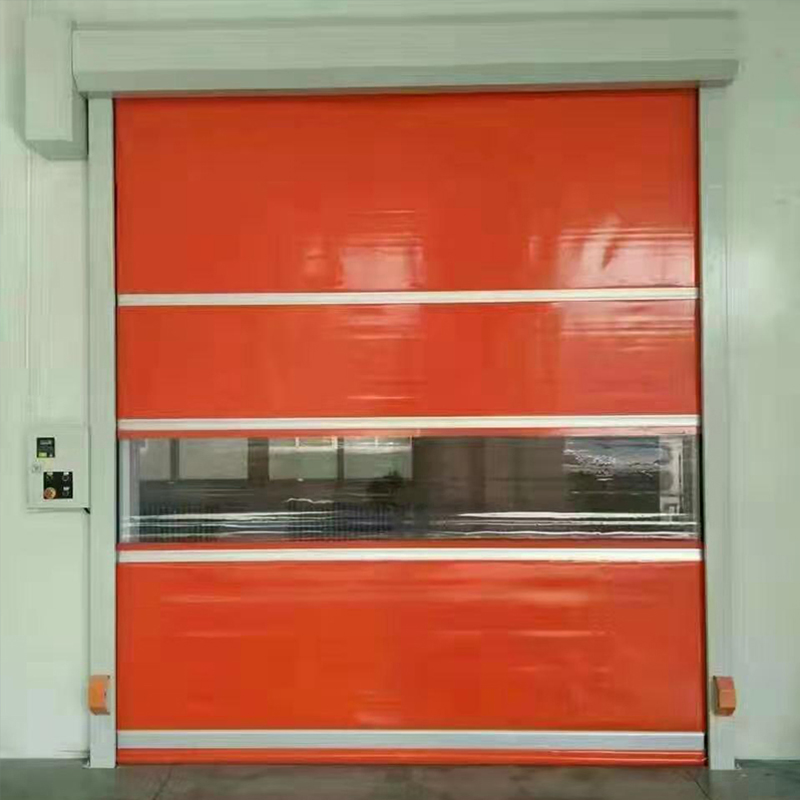

PVC Roller Shutter Door
JY-51
PVC roller shutter door is a lightweight, waterproof, corrosion-resistant door made of PVC. It rolls up/down to open/close, saving space, with manual or electric operation. Widely used in shops, garages, etc.
Quantity:
Product Specifications
PVC Rolling Shutter Door
PVC Rolling Shutter Door is a lightweight, durable rolling door made of PVC, featuring water resistance, corrosion resistance, and space-saving
design, widely used in commercial industrial, and civil scenarios with optional electric or manual operation.
Maximum size | 5800*6000mm(W*H) | |||
Wind pressure | 6-8 wind (refer to the size of the door) | |||
Opening speed | 1.0-2.0 m/s (speed adjustable, refer to the size of the door) | |||
Closing speed | 0.8 m/s (speed adjustable) | |||
Operating temperature | -5 to 60°C | |||
PVC base cloth thickness | 0.8-1.2mm | |||
Base fabric color | Blue, gray, white and other colors are optional | |||
Frame material | cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy | |||
Voltage | 220V/50HZ | |||
Interlock function | support | |||
Linkage function | support (can provide door-open in-position, door-close in-position signal) | |||

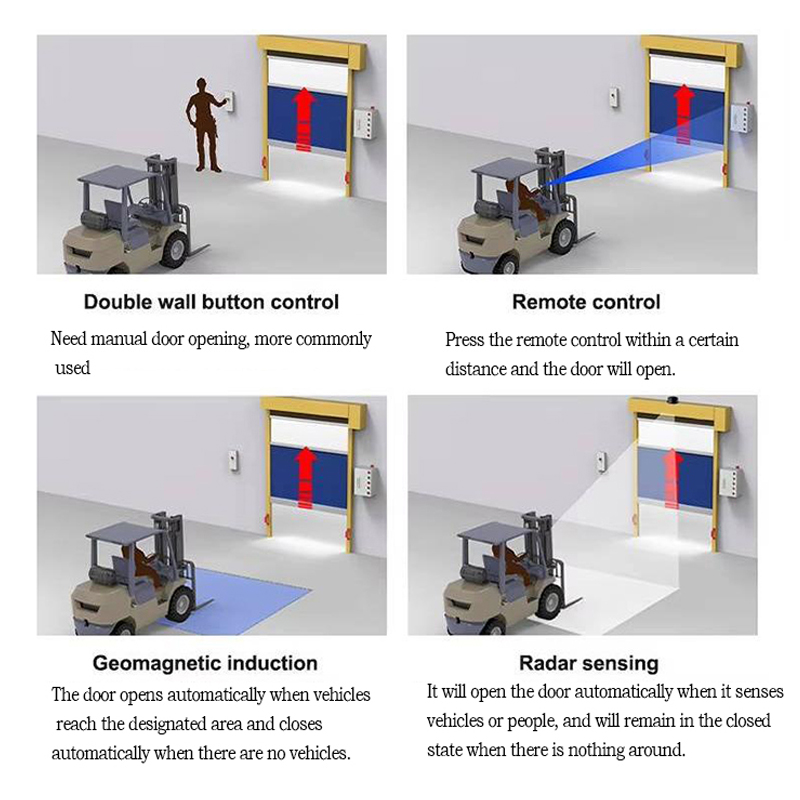

Induction mode | Radar, geomagnetic, photoelectric, rope, remote contro | |||
Product Specifications

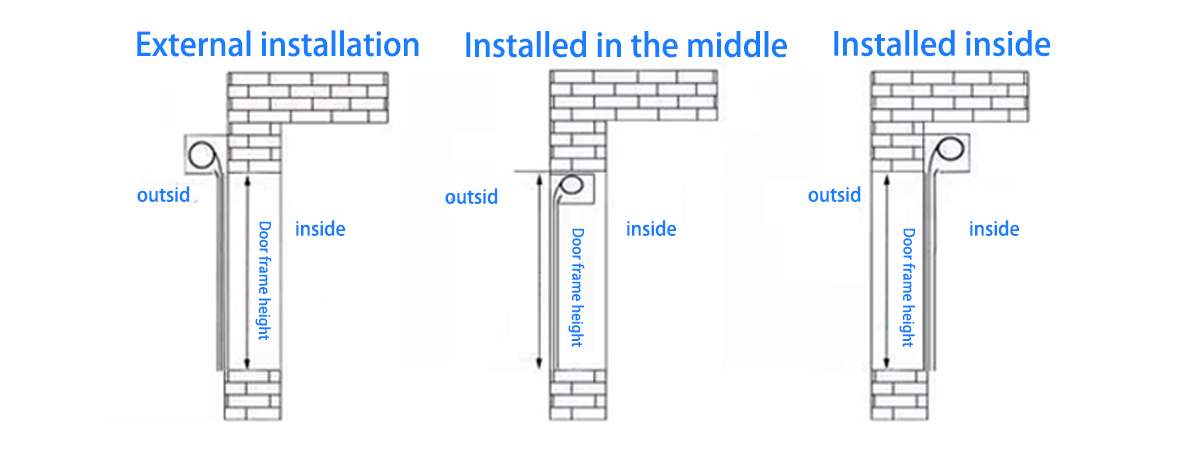

The opening method and color can be freely chosen.
