Double-opening Automatic Door
JY-62
Adopting 304 stainless steel panel with ring-shaped silicone sealing strips and automatic lifting bottom seal, it achieves high airtight isolation via manual or electric control, suitable for medical clean areas like operating rooms and ICUs requiring positive/negative pressure environments.
Quantity:
Product Specifications
High-Tech Hospital Operating Theatre Door Hermetic Clean Room Automatic
Sliding Door With Foot Switch
| Item | Details |
|---|---|
| Standard Size | 900*2100mm, 1200*2100mm, 1500*2100mm |
| Door Leaf Vision Window | With arc - shaped vision window / outer square and inner round vision window / square vision window |
| Door Body Filling | Flame - retardant paper honeycomb / fire - resistant aluminum honeycomb / rock wool |
| Door Lock | Indoor surface electrostatic spraying / outdoor fluorocarbon spraying / 304 stainless steel |

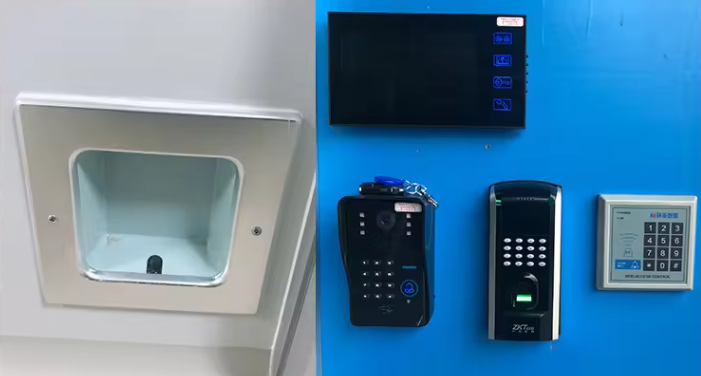

| Door - opening Method | Hand induction / foot induction / infrared induction / microwave induction |
| Door - opening Running Speed | 250 - 550mm/s (adjustable) |
| Door - closing Running Speed | 250 - 550mm/s (adjustable) |
| Power Supply Voltage | AC220V 50 - 60HZ |
Product Introduction
1.The product adopts a special motor for automatic doors, with stable and reliable performance; the overall operation is light, fast and quiet, and the
sound insulation effect is good.
2.The door body and automatic mechanism are directly hung on the wall, and the installation is simple and fast.
3.Non-toxic silicone sealing strips are installed around the door leaf to meet the cleanliness requirements.
4.The door body is impact-resistant and anti-derailment; it is firm and thick, fire-proof and durable, with high-strength flame-retardant core material filled
inside.
5.It adopts microcomputer control, which can control the door switch humanizedly, has an anti-pinch function, and can preset multiple operation
parameters (time, speed) ……, the operation safety is guaranteed, and it can realize manual control, infrared induction, foot control, microwave and other
multiple ways to open the door.

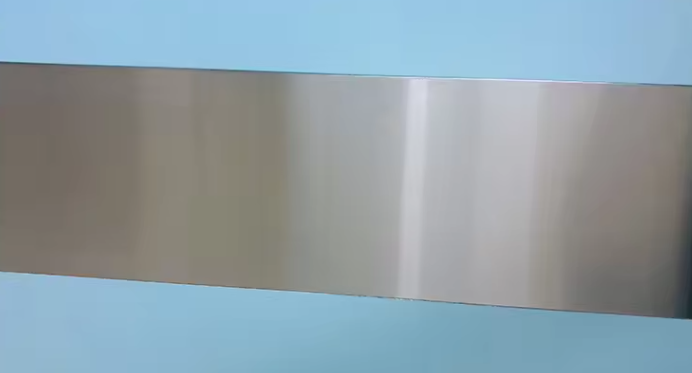

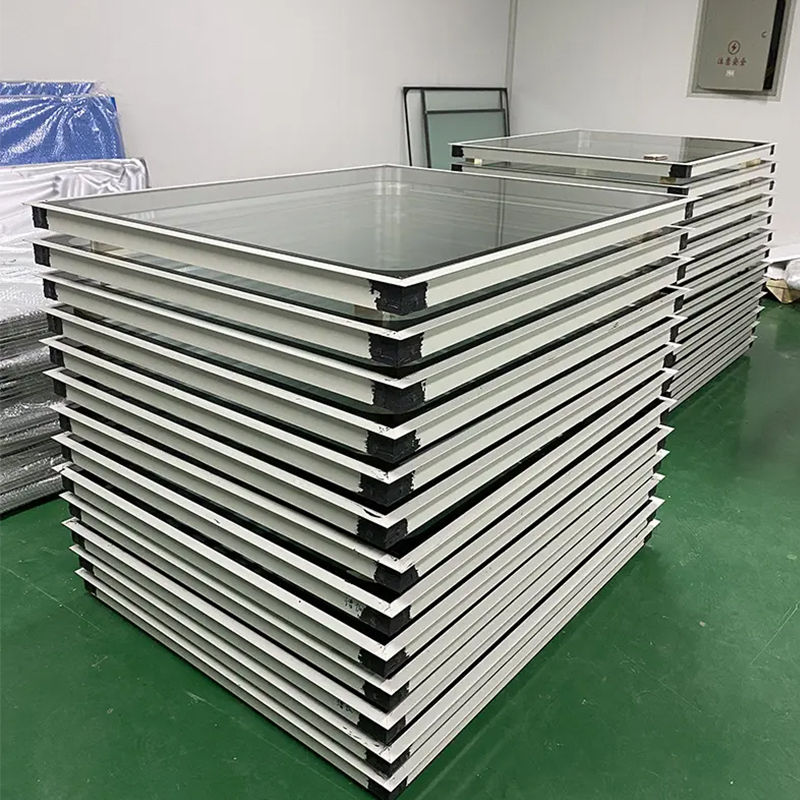

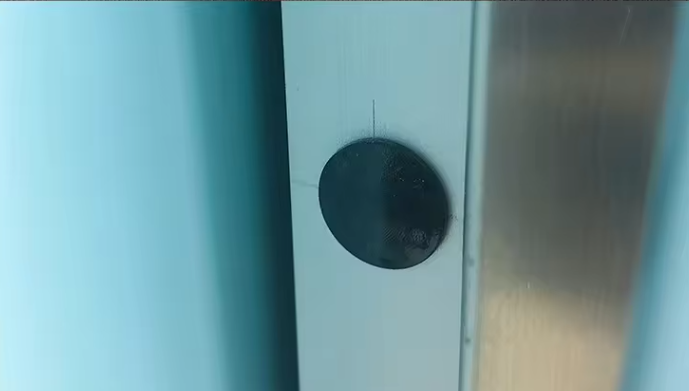

Double toughened glass Stainless steel anti-collision strip Automatic sensor Anti pinch device
